Brewery, Dairy & Beverage Production Flying Insect Control: UV Light Trap & Glue Board Program (2026)

Root Cause & Compliance Risks in Wet Production Environments

Why do liquid processing plants suffer severe fly problems? Water is everywhere. Sugar is everywhere. Yeast, malt, and milk solids sit deep inside drainage trenches where floor squeegees can’t reach.

┌─────────────────────────────────────────────────────────┐

│ Attractant Sources (Wort, Dairy Drains, CIP) │

└────────────────────────────┬────────────────────────────┘

│

▼

┌─────────────────────────────────────────────────────────┐

│ Ingress Points (Loading Bays, Unsealed Pipework) │

└────────────────────────────┬────────────────────────────┘

│

┌─────────────────┴─────────────────┐

▼ ▼

┌───────────────────────────┐ ┌───────────────────────────┐

│ Open Zapper Risks: │ │ Haierc Glue Board Fix: │

│ – Insect blow-out (3m) │ │ – Zero blast debris │

│ – Product contamination │ │ – Whole-body capture │

│ – Immediate audit fail │ │ – Fast catch counts │

└───────────────────────────┘ └───────────────────────────┘

Organic sludge builds up rapidly. In dairy processing, warm whey residue in floor expansion joints accelerates the life cycle of psychodid flies. That makes drain fly control dairy facilities require a continuous physical trapping process rather than a sporadic wipe-down. In brewing, boiling wort vents alcohol and sugar esters straight out the exhaust stacks, pulling Drosophila melanogaster from hundreds of yards away. Effective fruit fly control brewery operations require traps specifically calibrated to capture small-bodied insects before they reach open fermentation tanks.

The regulatory costs are steep. Under BRCGS Issue 9 Section 4.14, food sites must maintain comprehensive flying insect monitoring systems. An auditor will issue a major non-conformance if an insect light trap sits directly above an open bottle rinser. European and UK plants governed by Confederation of European Pest Management Associations (CEPA) protocols must prove trending data. If you don’t catch, count, and categorize captured insects, you fail the audit.

Then there’s the economic reality. Beverage production pest control failures lead to whole-batch recalls. A single contaminated 5,000-liter bright beer tank can cost upwards of £25,000 in dumped inventory and packaging waste. Sourcing commercial UV fly killer wholesale units gives professional pest contractors the margins they need while equipping client facilities with audit-ready hardware.

Step-by-Step IPM Protocol for Wet Processing Plants

Controlling flies in heavy industrial liquid plants requires methodical execution. You cannot simply hang a single trap near a door and walk away.

First, secure the outer envelope. Seal gaps around boiler lines, pipe entries, and roll-up shipping doors. Pest contractors often pack conduit penetrations with Rodent Copper Mesh or seal flashing joints with Copper Foil Tape to block both insects and rodents. For exterior perimeters, contractors coordinate these exclusion points with specialized ground gear like a Detachable Cap/Lid Monitoring bait Station, a mechanical mouse trap, or a rat trap to intercept pests before they touch loading docks.

Second, map out zero-blast interior light traps. Every insect light trap HACCP program demands glue board units inside sensitive processing rooms. High-voltage electrocution grids belong strictly in exterior trash docks or dry storage staging rooms far from exposed product.

Third, obey placement physics. Flies fly low. Mount light units between 1.5 and 2 meters from finished floor level where target species fly. Position traps at a 90-degree angle to incoming daylight from exterior windows or overhead skylights. Why? Sunlight washes out artificial ultraviolet light, making the trap completely invisible to nearby flies.

Fourth, match glue boards to the thermal environment. Standard hot-melt glue melts in a 35°C brewing kettle room, running straight down the wall. It also hardens and glazes over in a 4°C milk chilling vault. You need UV-stabilized, high-tack fly glue board options rated for wide operating temperatures.

+—————————————————————————–+

| BEVERAGE & DAIRY IPM HARDWARE SELECTION MATRIX |

+————————–+———————–+————————–+

| Facility Zone | Primary Hardware | Key Compliance Rule |

+————————–+———————–+————————–+

| Brewhouse / CIP Lines | 304 SS UV Glue Trap | IP65 Washdown Rated |

| Milk Chilling (4°C) | Low-Temp Glue Trap | Non-Glazing Polymer Base |

| Dry Grain Storage | LED UV Insect Trap | Low-Energy 24/7 Draw |

| Exterior Loading Bays | Heavy-Duty Bird Spike | UV-Polycarbonate / 304SS |

| Cable / Pipe Trays | Rodent Copper Mesh | Pure Mechanical Seal |

+————————–+———————–+————————–+

Fifth, establish strict board rotation and count intervals. In high-sugar environments, fruit fly control brewery traps fill up rapidly during summer harvesting and fermentation peaks. Technicians must inspect, log species counts, and replace glue inserts monthly to maintain regulatory compliance.

Product Deep Dive: Commercial UV Traps & Glue Board Engineering

Commercial food and beverage plants destroy cheap hardware. Moisture corrodes light ballasts. Daily pressure washing splits lightweight plastic casings. Caustic foam cleansers ruin mild steel.

Haierc designs industrial-grade units specifically for harsh production zones. Our flagship models—including the HC1663 wall-mount series and HC2608 compact washdown units—are formed from 304-grade stainless steel or corrosion-resistant aluminum alloy. They hold up against aggressive cleaning chemicals day after day.

Light attraction comes down to wavelength precision. Insects respond to light between 350 and 375 nanometers, with peak sensitivity landing at 365nm. Our UV fly killer wholesale product lines use high-output 365nm UVA tubes or targeted LED insect lamp wholesale modules. The LED boards cut power consumption by up to 60%, running cool while pumping out concentrated UVA rays that draw flies from over 120 square meters of floor space.

The catch mechanism relies on specialized hot-melt adhesive boards. Each fly glue board is coated with non-drying polyisobutylene glue treated with UV inhibitors. This chemical formulation prevents premature skinning or drying under constant UVA radiation. Technicians simply slide out the front guard plate, log catch counts on the printed board grid, and drop in a fresh sheet. Quick service saves labor.

Front Guard (304 SS)

┌──────────────────────┐

│ ▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒▒ │ ===> Quick-release servicing latch

│ │

│ ( 365nm UVA Tube ) │ ===> Shatterproof FEP retention coating

│ │

│ ┌──────────────────┐ │

│ │ Grid-Printed │ │ ===> Non-drying high-tack adhesive board

│ │ Fly Glue Board │ │

│ └──────────────────┘ │

└──────────────────────┘

Safety is mandatory. All glass tubes feature an extruded Fluorinated Ethylene Propylene (FEP) shatterproof coating. If an accidental forklift impact or rogue pressure-washer nozzle breaks a tube, every glass shard remains locked inside the FEP sleeve. That prevents glass contamination in bottling runs, satisfying BRCGS and IFS Food audit criteria.

Haierc Industrial Flying Insect Trap Specifications vs Industry Standard

Specification	Haierc Standard Specification	Industry Average Specification
Housing Material	1.0mm 304 Stainless Steel or Anodized Alloy	0.6mm Painted Mild Steel or ABS Plastic
UVA Peak Output	365 nm Optimized Spectrum (Tube or LED)	350-390 nm Non-Calibrated Light Bands
Shatterproof Protection	FEP Extruded Sleeve (IEC 61549 Standard)	Unprotected Glass or Low-Grade Dip-Coat
Glue Board Thermal Range	-10°C to +55°C Stable Polyisobutylene	+10°C to +35°C Standard Hot-Melt Adhesive
Certification Standards	CE, RoHS, REACH, ISO 9001 Factory Direct	Varies; basic CE only
Service Access	Tool-Free Front Drop Panel / Quick-Release	Screwed Casings Requiring Disassembly

Key Benefits for United Kingdom Distributors

Pest control supply distributors in the UK operate in a demanding market. Food processors throughout Yorkshire, the Midlands, and Scotland face audits from major retailers enforcing zero-tolerance insect guidelines.

UK technicians need hardware that meets BPCA codes of practice without eating into service margins. Importing directly from our manufacturing hub eliminates regional middleman markups. That keeps your distributor margins healthy.

Our systems help service companies satisfy multiple pest challenges across a client’s estate. While treating a brewery interior with a flying insect glue trap, contractors often secure the facility exterior using humane pigeon spike UK 2026 options, an anti pigeon spike polycarbonate base, or stainless steel pigeon spike EU importer rated hardware.

Do birds roost on your client’s warehouse roof? Pair interior fly units with UV-Stabilized Polycarbonate Base Bird Spikes or Bird Scare Discs Reflective Wind Spinners on exterior grain silos. Need rodent exclusion? We provide complete container loads combining flying insect units with cockroach sticky trap sheets, high-density Rodent Copper Mesh, and Silver Mole Trap hardware for perimeter grounds.

Technical Specifications & Variants

Haierc supplies commercial flying insect gear across several standardized formats designed for food manufacturing:

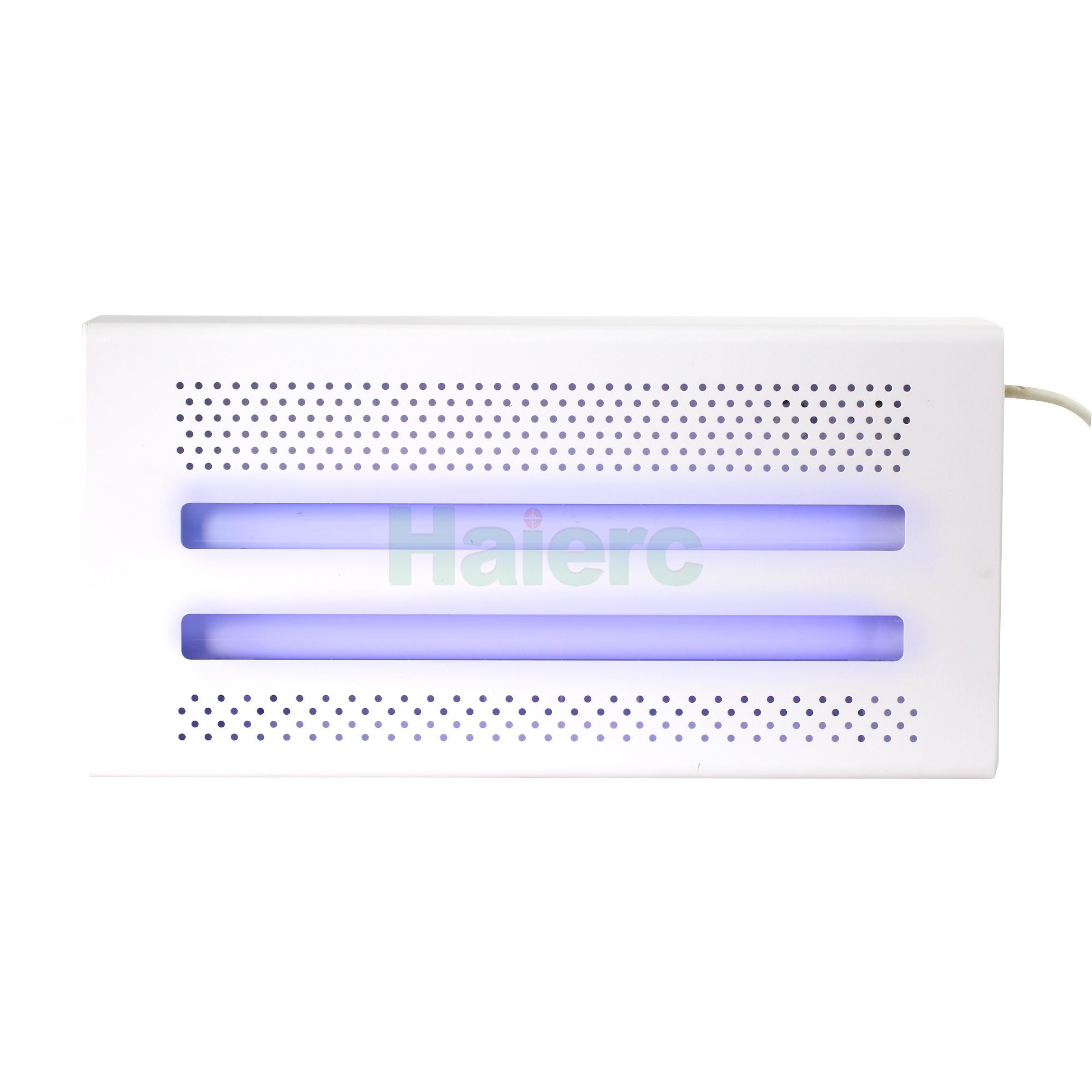

• HC1663 Wall-Sconce Series: Dimensions 480 x 290 x 140 mm. 304 Stainless Steel. Dual 15W 365nm FEP shatterproof tubes. Effective area: 80-100 m². Uses standard replacement fly glue board measuring 425 x 245 mm.
• HC2608 Low-Profile LED Series: Dimensions 500 x 200 x 80 mm. Brushed aluminum body with energy-saving UVA LED bars. 24W total power draw. Effective area: 120-150 m².
• Suspended Dual-Sided Units: Dimensions 650 x 320 x 160 mm. Dual open-face design for high-ceiling bottling halls. Covers 180+ m² with double-sided adhesive inserts.



Our baseline MOQ starts at 500 units for customized standard designs, with smaller trial quantities available for new distributor qualifications. Replacement glue boards ship in master cartons of 200 or 500 pieces, packed flat in moisture-proof barrier wrap to preserve glue tack during ocean transit.

┌────────────────────────────────────────────────────────┐

│ Haierc OEM/ODM Hardware Customization Flow │

└───────────────────────────┬────────────────────────────┘

│

┌────────────────────────────────┼────────────────────────────────┐

▼ ▼ ▼

┌───────────────────────────┐ ┌───────────────────────────┐ ┌───────────────────────────┐

│ Housing Customization │ │ Electrical Calibration │ │ Consumables & Branding │

│ – 304 Stainless / Alloy │ │ – 365nm UV LED / T8 Tube │ │ – Custom Grid Glue Boards │

│ – Laser-cut Logo │ │ – 110V / 230V Ballasts │ │ – Private Label Packaging │

│ – Custom Powder Coating │ │ – UK / EU Plugs │ │ – Multi-Language Manuals │

└───────────────────────────┘ └───────────────────────────┘ └───────────────────────────┘

OEM/ODM Capabilities at Our Tianjin Factory

We operate a complete production hub in Tianjin, China, running under ISO 9001 quality management systems. Our engineering team handles complete OEM/ODM modifications for international pest management brands.

Want your company logo laser-cut directly into the stainless steel front casing? We do it in-house. Need custom-dimensioned glue boards with branded trending grids for your service technicians? We print and die-cut adhesive boards to your exact drawings.

We produce comprehensive pest hardware lines for global brands. Our factory lines turn out everything from a classic snap trap or metal Glue Trap to Bird Reflective Devices, bird safety net wholesale India lines, and pigeon netting HDB Singapore projects. European importers rely on us for rodent control supplies sourcing Germany requirements and south European distribution of malla antipájaros mayorista materials.

Standard OEM production lead times run between 15 and 25 days from final artwork confirmation. Rush batch runs can be scheduled for peak season stock replenishment.

Why Choose Haierc PCO as Your Commercial Hardware Partner

Haierc brings 18+ years of dedicated manufacturing experience to the commercial pest control market. We don’t act as a trading broker. We build the hardware.

Our products are certified to CE, RoHS, and REACH standards, ensuring smooth customs clearance across UK and European ports. We ship container loads and pallet consignments to over 80 countries worldwide, supporting leading distributors with direct factory pricing, consistent raw material batches, and reliable supply chains.

You get high-margin, audit-ready hardware backed by responsive factory engineering. Free test samples are available for qualified trade distributors and pest management firms.
